Electric Muffle Furnace


This furnace is ideal for larger samples and specially cupellation and assaying work or gold sampling.



Safety door switch

Safe Thick Wall Design.

Low Power Consumption

Steel Frame

Aluminized panels

Standard Simmerstat Control .

Optional Temperature Controller.

Muffle Type Firing Chamber Optional


Power Rating

230 Volt

2.3 Kw

10 Amp

Max. Temp. 1100 degrees C.


Internal 12"x12"x12"

External 29"High x 25"Wide27"High

Weight 67 Kg.

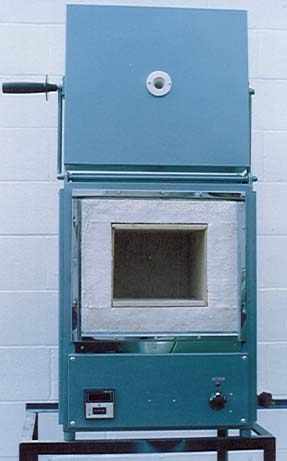

Any shape or size this is a 1100 C Cupellation Furnace ( in use by Amdel at McCrease Gold Fields)
