Top Hat Kiln

Top Hat ( Bell Kiln ) are mainly used for Pottery , Glass work. They can be build in a variety of sizes.

The base is made of quality lightweight insulation bricks backed by insulation board for optimum insulation.



*Storage drawers optional extra

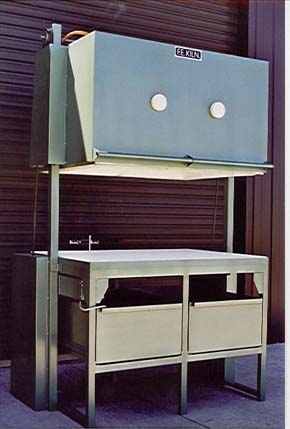

The hat can be lifted by means of a winch or by counter weight as shown in picture.

Internal measurements;1000mm x 600mm x 530mm high.

Maximum temperature ; 1100 degrees C ( 2012 Fahrenheit)

Heat up time 0-880 degrees C in 33 Min.

Power rating ; 3 Phase , 230 Volt , 15 KW.

Four vent holes are provided for fast cooling.
