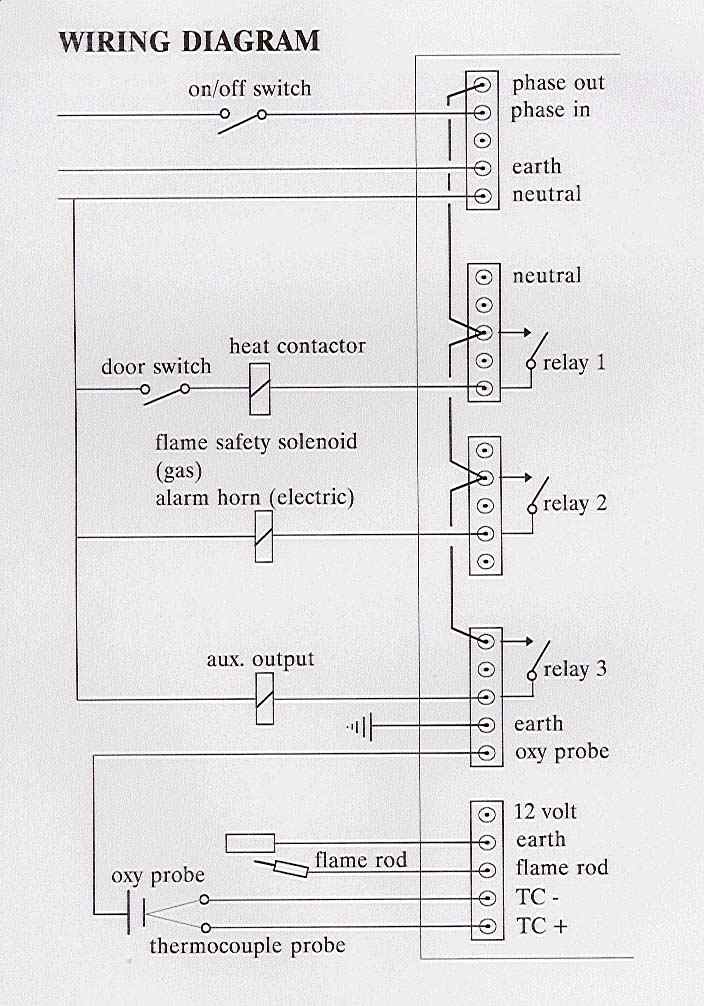

WIRING DIAGRAM FE AUTO CONTROLLER

The FE auto controller has got it's own PVC casing and can be hang against a wall close to the kiln , to be able to use all features of the controller a seven core cable (0.75 mm) is needed plus the correct compensating cable for the probe in use see(color chart).

Example only usually not all connections are used.


If you are unsure or need any help , do not hesitate to contact us we are only an email away.
