This is a very powerful panel mount controller with 8 steps each with a ramp , set temperature and hold or soak time , which makes this an ideal controller for glass work.
It can temporarily show the remaining Hold or Soak time , or the remaining time in a Delay.

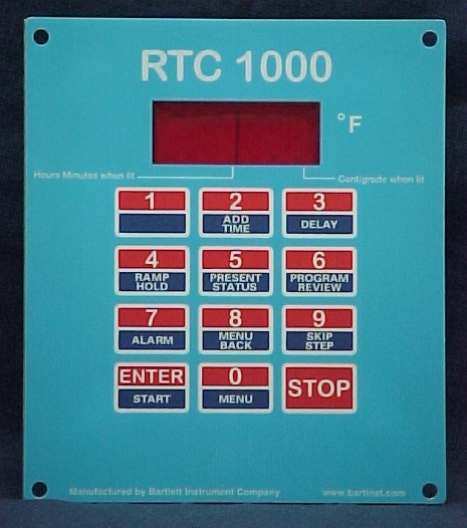

RTC1000 Digital Kiln Controller
Features of the RTC 1000 include: special glass functions, add time, and edit
on the fly, as well as ceramic cone-fire features; thermocouple offsets; six
ramp/hold programs; zone control; add time; back key; and a recall user program
to allow easier use of the controller.
Features of the RTC 1000
Cone Fire ,Preheat ,6 Ramp/Hold Programs ,Zone Control ,Thermocouple Offset .
Other Software Options
Ramp/Hold programs only (no Cone Fire features) , Jewelry Burn Out Programs .
New improved features:
Add Time ,Back Key , Recall User Program .
CONE FIRE METHOD - use when firing to a specific cone number.
Available in K type For Ceramics / Earthenware and Glass work ( max temp.1150 degrees C ) .
Available in R type For High Firing Earthenware / Stoneware Pottery and Porcelain (max temp.1400 degrees C).
Easily to build into any existing kiln .
This controller comes complete with a Transformer and 1 x Relay 25 Amp
One RTC 1000 controller can operate 3 relays , each relay can switch 2 x 25 Amp. giving you a switching capacity of a massive 150 Amp.
Extra relays or heavy 30 Amp relays are available .
